14x36x4 Air Filters: Is MERV 13 Safe for Old HVAC?
That MERV 13 14x36x4 sitting in your shopping cart? In most older Wellington homes, it'll work just fine. The four-inch slot is forgiving in ways a one-inch slot never could be, and the systems we service can almost always handle the jump from MERV 8 to MERV 13 without a fight. The trouble shows up somewhere else entirely. Dirty blower wheels, leaky returns, and ductwork that was undersized the day it was installed are what actually starve a system of airflow. Not the filter sitting on top of all that.
TL;DR Quick Answers
14x36x4 Air Filters
14x36x4 MERV 13 air filters fit most older HVAC systems without a problem. The four-inch depth gives you about four times the pleated surface area of a one-inch filter, which keeps pressure drop manageable even at the higher rating. Actual size measures 13.5 by 35.5 by 3.63 inches, and we tell Wellington customers to swap it every sixty to ninety days because Florida humidity loads filters faster than what you'd see in a drier climate. Step down to MERV 11 only if your blower sounds tired or you've got leaks at the return.
Top 5 Takeaways
A 14x36x4 MERV 13 fits most older Wellington HVAC systems. The four-inch depth handles the higher resistance without choking your blower.
Pressure drop matters more than the MERV rating on the label. A tired blower or a leaky return decides whether your system can take the upgrade.
The actual filter measures 13.5 by 35.5 by 3.63 inches. Slot housings are built with that tolerance gap on purpose.
Pollen season in Palm Beach County, multi-pet homes, and year-round humidity all make MERV 13 worth the upgrade.
If your system pushes back in the first month, drop to MERV 11 before pushing harder.
What A 14x36x4 Air Filter Actually Does In Your HVAC
Walk back to your air handler and find the slot where the filter slides in. On a Wellington home built in the late nineties or early two thousands, that slot is usually a 14x36x4: a wide, four-inch deep housing that pulls return air through pleated media before it hits the blower wheel and evaporator coil. The filter's job is to catch what is floating in the air. Pollen blowing in from the lawn, drywall dust from a remodel, dander from the dog who never met a couch he didn't like, mold spores carried in on summer humidity. The deeper the pleats, the more of that the filter pulls down before your blower has to deal with it.
An air filter does its job the same way, no matter which size you buy. Your blower pulls return air through layers of fibrous media, particles stick to the fibers, and what comes out the other side is meant to be cleaner than what went in. The denser the media, the smaller the particles caught. Higher MERV means the filter has to be sized more carefully for the system pulling air through it.
Pull a 14x36x4 out of the box and put a tape measure on it. The filter measures 13.5 by 35.5 by 3.63 inches, not exactly 14 by 36 by 4. Manufacturers round the nominal size up because slot housings are built with a small tolerance gap on purpose. The filter has to slide in cleanly without binding on the rails.
Pleated media is what makes a 14x36x4 work at MERV 13. The accordion folds pack far more filtering surface into the same footprint than a flat-panel screen ever could. That surface area is the whole reason a four-inch MERV 13 stays workable where a one-inch MERV 13 would have your blower fighting for every breath.

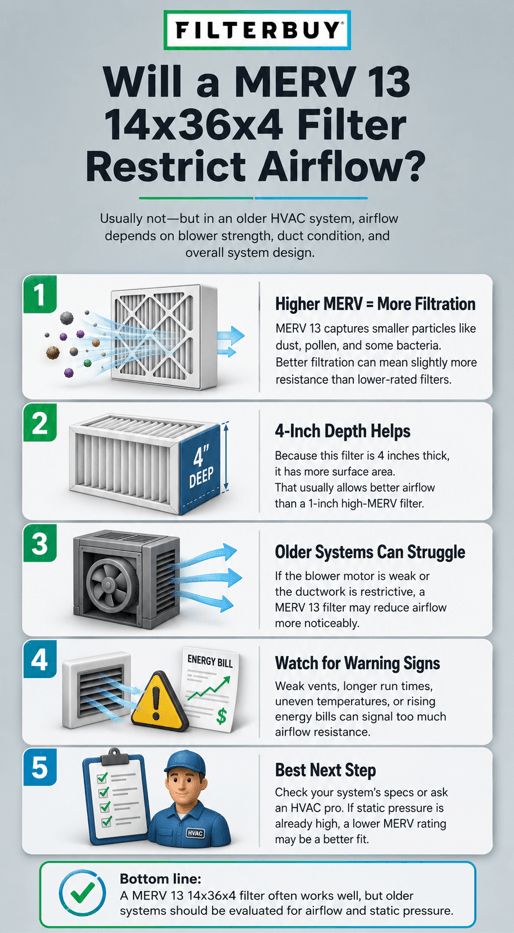

How MERV 13 Affects Airflow In An Older HVAC
MERV is short for Minimum Efficiency Reporting Value. The scale tells you how small a particle a filter can catch on one pass through the media. At MERV 8, you catch pollen and visible dust. By the time you get to MERV 11, the filter is pulling pet dander, mold spores, and fine cleaning dust. At MERV 13, you're catching particles down to smoke and virus-sized droplets, which covers most of what you can't see in indoor air.
Denser media means more resistance to airflow, and that resistance has a name in the trade. We call it pressure drop. Pressure drop measures how hard your blower has to work to pull air through the filter. Picture sipping water through a wide straw versus a coffee stirrer.
Pressure drop matters most in an already-tired system. An aging blower has less reserve power, the return duct can't make up the gap, and any restriction at the filter just adds to the problem. The four-inch form factor saves you here. With roughly four times the pleated surface area of a one-inch filter, a 14x36x4 MERV 13 often runs cooler and quieter than a MERV 11 ever could in a one-inch slot.
Warning Signs Your Older HVAC Is Struggling
Two weeks after you put in a new filter, walk your system and check for these. Our technicians look at the same set whenever a Wellington homeowner calls about cooling that fell off after a filter swap.
Run times stretch longer than normal due to the outdoor temperature.
Whistling or hissing at the return grille.
Ice or frost on the evaporator coil or refrigerant lines.
Noticeably weaker airflow at the supply registers.
A blower motor that runs hotter to the touch than usual.
Higher-than-typical electric bill for the same outdoor weather.
If two or more of those show up inside the first thirty days, the system is telling you something. The cause is rarely the filter on its own. Usually, it's a blower wheel that hasn't been cleaned in a decade, or a return plenum with hidden leaks, or ductwork that was undersized the day the house went up. The new filter just made the existing problem visible.
Choosing Between 14x36x4 MERV 8, MERV 11, And MERV 13
MERV tiers work a little like sunscreen. Higher numbers buy stronger protection, with a small airflow cos, so you have to be ready to absorb.
The lowest tier we stock is MERV 8. It catches lint, larger pollen, and visible dust, which is enough for a rental property or any home with no pets and nobody dealing with allergies. We keep cases of MERV 8 on the truck because it's still the right call for plenty of Wellington customers.
Step up to MERV 11, and the filter starts pulling pet dander, mold spores, and fine cleaning dust without putting noticeable strain on the system. This is where most Wellington homes land, especially homes with one pet, seasonal allergies, and normal household traffic.
MERV 13 is the call for homes that need more than that. The filter pulls down smoke and virus-carrying droplets, and we recommend it for any household with allergy sufferers, more than one pet, or someone managing asthma. It's also the tier most parents with newborns or older relatives in the house ask for once they understand the math.
For more on how slot sizing changes performance across different HVAC configurations, our 16x18x1 air filter sizing guide walks through the actual-versus-nominal measurement issue and shows why slot tolerances matter when you're picking a replacement.
When MERV 13 Pays Off For Wellington Homes
A handful of real situations make MERV 13 worth every penny in this part of Florida.
Start with pollen. From February through May, oak, pine, and grass counts in Palm Beach County run well above the national average. A MERV 13 pulls those particles out of the return air before your HVAC blows them back through the house.
Add pets to the equation, and the case gets stronger. One dog and one cat can shed enough dander in a week to coat every surface in the home, and MERV 13 captures fine dander at a measurably higher rate than MERV 11. The lighter particles are the ones that stay airborne for hours after the pet leaves the room.
Then there's humidity. Mold spores stay active in South Florida year-round, and they spike after summer storms when indoor moisture climbs. A MERV 13 filter is the cleanest line of defense between airborne spores and the air you're breathing, short of running a separate purifier.
Pro Tips For Running A MERV 13 14x36x4 In An Older System
Get your static pressure measured at install. Anything above 0.5 inches of water column on a residential system means you've got a duct or filter problem worth chasing down.
Plan on a fresh filter every 60 to 90 days. Florida humidity and heavy cooling loads will load up a filter faster than what you'd see in a drier climate.
Keep an eye on your blower amperage. If the motor is pulling more than its rated draw, it's fighting harder than it should,d and you're looking at an early burnout.
Run a hand along the return-air plenum and feel for leaks. A leaky return pulls attic air straight into your filter, and that load of insulation dust will cut filter life in half before you notice anything is wrong.
Book a tune-up before you step up MERV tiers. A clean coil and tight ducts give the new filter the runway it needs to do its job.
“In all the years I've spent opening up return plenums on Wellington houses, the MERV rating on the filter has never been the airflow problem. The airflow problem lives in leaky ductwork and a blower wheel caked with a decade of dust, and a clean 14x36x4 in a four-inch slot almost always helps that system breathe easier than it had before.”
Essential Resources On 14x36x4 Air Filters
Seven references that fill in the rest of what you need before you commit to your next 14x36x4 upgrade. Each one comes from a recognized public-health, industry, or government authority.
How The EPA Defines Indoor Air Quality (And Why Your Filter Matters)
The Environmental Protection Agency's primer is where most homeowners reading about indoor air quality should start. It walks through why indoor pollutant levels can run higher than outdoor levels and where filtration fits into a healthier home.
Source: EPA Introduction To Indoor Air Quality
The DOE Playbook For Keeping Your AC Healthy Year-Round
The Department of Energy's air conditioner maintenance guide is a good companion read after you've picked a filter. It covers coil care, refrigerant levels, tune-up timing, and the system-side details that protect the airflow path your 14x36x4 depends on.
Source: U.S. Department Of Energy Air Conditioner Maintenance Guide
The ASHRAE Position On Residential Filtration And Air Cleaning
ASHRAE is the engineering body that writes the standards governing HVAC design in the United States. Their position document on filtration spells out which technologies actually do something in a real home and which marketing claims to ignore.
Source: ASHRAE Position Document On Filtration And Air Cleaning
How To Spot Asthma And Allergy-Friendly Products At A Glance
The Asthma and Allergy Foundation of America runs a certification program that flags which home products have been independently tested to reduce common indoor allergens. Worth pulling up before any MERV upgrade if someone in the home has asthma or seasonal allergies.
Source: AAFA Certified Asthma And Allergy Friendly Program
The Industry Plain-English Guide To Home Air Filtration
The National Air Filtration Association wrote a residential primer that translates MERV ratings into language any homeowner can act on. Read it once before deciding whether MERV 13 belongs in your house.
Source: NAFA Residential Air Filtration Primer
Why Pet Allergens Hide Where You Cannot See Them
The American Academy of Allergy, Asthma, and Immunology breaks down how cat and dog dander spreads through a house and how long it stays airborne after the pet has moved on. If you've got more than one pet, this is the reading that justifies the MERV 13 upgrade.
Source: AAAAI Pet Allergy Overview
Clinical Guidance On Asthma, Mold, And Weather-Driven Triggers
The CDC's clinical guidance on asthma after severe weather events is one of the more useful documents we keep in mind during hurricane season here. It covers mold-driven asthma flares and the role indoor air filtration plays in keeping symptoms from spiraling.
Source: CDC Clinical Guidance On Asthma And Mold Allergy
Supporting Statistics
Three data points that frame the value of a properly sized 14x36x4 filter for a Wellington home.
Half Of Your Home Energy Goes To Heating And Cooling
Nearly half of the energy used in your home goes to heating and cooling, which is why a clean, correctly sized filter is one of the highest-leverage maintenance items you have any control over. A clogged filter forces the blower to fight, and that fight burns extra power for as long as the filter stays in. In South Florida, where cooling runs ten months out of twelve, that math gets steeper than it does almost anywhere else in the country.
Source: ENERGY STAR Heat And Cool Efficiently Guide
Indoor Air Can Be Two To Five Times Dirtier Than Outdoor Air
The American Lung Association reports that indoor air can run two to five times, and sometimes up to one hundred times, more polluted than outdoor air. Americans spend about 90 percent of their time inside. That is the math behind why so many Wellington households with allergies, pets, or asthma in the family eventually move up to MERV 13 in a 14x36x4.
Source: American Lung Association Clean Air Indoors Guide
Filtration Reduces Pet Allergens By 76 To 89 Percent
A peer-reviewed study published through the National Institutes of Health measured what dedicated air filtration actually did in homes where pets lived. Cat allergen dropped by 76.6 percent. Dog allergen dropped by 89.3 percent. The numbers settle the question of whether the right filter does anything beyond catching the dust you can see on the shelf.
Source: NIH-Published Study On Air Filtration And Pet Allergens
Final Thoughts And Opinion
Working on older HVAC systems across Wellington and the rest of South Florida has taught us a few things, and the most useful one is this. A 14x36x4 MERV 13 air filter is the right pick for almost every older system we walk into. The four-inch depth does the heavy lifting on pressure drop. The higher MERV rating pulls its weight against pollen, dander, mold, and the humidity that drives all three.
When MERV 13 turns out to be the wrong call, the filter usually hasn't failed at all. Look upstream for the actual problem: a return duct with hidden leaks, a blower wheel coated in a decade of dust, or an HVAC system that was running on borrowed time long before any new filter showed up.
Our pattern for Wellington homes looks like this:
Start with a 14x36x4 MERV 13 air filter made in the USA from Filterbuy.
Watch for the warning signs above during the first thirty days.
If the system pushes back, book a tune-up before you step down to MERV 11.
After manufacturing filters for over a decade and serving more than two million households, the patterns are familiar to us. Better filtration pays itself back over time. You get cleaner air in the house, you get fewer repair calls, you get comfort that runs in the background without anyone having to think about it, and you usually get a longer life out of the equipment, too.
Frequently Asked Questions
Q: Can I use a MERV 13 14x36x4 filter in a 20-year-old HVAC?
A: In most cases, yes. A four-inch depth keeps pressure drop manageable even on older blowers. Watch for longer run times or whistling at the return grille during the first month, and if either shows up, call for a tune-up or drop down to MERV 11.
Q: What is the difference between a 14x36x4 furnace filter and a 14x36x4 AC filter?
A: There is no functional difference. The filter sits in the return path of a forced-air system, which is the same path your AC and your heat strip both use. In South Florida, the same 14x36x4 HVAC filter is doing both jobs all year.
Q: How often should I replace a 14x36x4 pleated air filter in South Florida?
A: Every 60 to 90 days for most Wellington households. Humid air, long pollen seasons, and the heavy cooling load down here shorten filter life compared to a drier climate. If you've got pets or allergy sufferers in the house, stay closer to 60.
Q: Is the actual size of a 14x36x4 air filter really 13.5 x 35.5 x 3.63 inches?
A: Yes. Nominal size on the box is rounded for the shelf, and the actual filter is built slightly smaller so it slides into standard 4-inch slot housings cleanly. The tolerance gap is by design.
Q: Does a higher MERV rating raise my electric bill?
A: It can, but the effect is small in a 4-inch filter and almost always disappears once you start replacing on schedule. A clogged MERV 8 filter wastes more energy than a fresh MERV 13 ever will.
Q: Will a 14x36x4 MERV 13 filter help with pet dander and allergies?
A: Substantially, yes. MERV 13 captures particles down to the size of fine dander and pollen grains, which is most of what triggers indoor allergy symptoms. Homes with two or more pets see the biggest jump in air quality after the swap.
Q: Where can I buy a 14x36x4 air filter pack?
A: Filterbuy ships 14x36x4 air filter packs direct from the factory in MERV 8, MERV 11, and MERV 13. Most Wellington homeowners buy a six-pack at a time and set a calendar reminder for the next swap 60 to 90 days out.
Q: Are Filterbuy 14x36x4 air filters made in the USA?
A: Yes. Filterbuy manufactures every 14x36x4 in American factories, and the green frame around the housing is the marker to look for when you are comparing options on the shelf.
Find The Right 14x36x4 Filter For Your Wellington Home
Order a 14x36x4 MERV 13 air filter from Filterbuy and get your home set up for cleaner, easier-breathing air before the next summer cooling load hits. If your system needs a tune-up before the upgrade, the Filterbuy HVAC Solutions team in Wellington is one phone call away.
